| We provide the machinery and facilities for bagging of powders,as fully automated system solutions. |
|
|
|
 |
|
|
AMO container bag(sack) weighing machine allowed just a single operator to
fill up the powder into container bag and as a result of that, operation efficiency
can be improved drastically.
|
AMO has developed safe and rational weighing
machine for various container bag ( sack ).
Recently, under the pressure for
achieving products distribution rationalization, powder
manufacturing / packing industry are making much efforts
to realize transportation cost saving. amo has newly developed
safe, rational and user-friendly container bag ( sack )
weighing machine make the most of own technology for powder
fill up system using of kraft paper sack.
Demonstrate its superior features at
the maximum within the limited space.
Amo container bag ( sack ) weighing machine shall bring up "solution"
for powder manufacturing / packing industry who aim at improving
present packing conditions. |
|
 |
|
Distinctive technical features of the container bag ( sack ) weighing machine |
 |
Expansion rubber tube clamp system |
Since container bag ( sack ) opening is sealed up and holded from
inside using of expandable rubber tube, frequency of powder scattering
can be minimized as compare to container bag ( sack ) weighing machine
that introducing "arm clamping method".
|
Movable type wagon for convey container bag ( sack ) |
Dual movable type wagons builted-in both right hand and left hand
side of the container bag ( sack ) weighing machine is
automatically discharging container bag (sack ) after powder fill
up completion and improve its operation efficiency.
|
Supports container bag hang-up rope |
The arms located at the both ends of movable type wagon can be swung
by air cylinder mechanism for hang up rope easily. the said arms
support container bag ( sack ) by swinging toward upper side during
powder fill up operation.
|
Powder fill up nozzle opening can be moved up and down |
Powder fill up nozzle located at the center of container bag (sack) weighing
machine can be moved up and down by air cylinder
mechanism. the height of the said nozzle can be adjusted
by an operator at will.
|
Air exhaust system |
That system expands container bag ( sack ) by blow air before powder
fill up operation, widen container bag ( sack ) bottom area and stabilize
the bag (sack) whole shape for achieving smooth powder fill up operation.?
dual shaped powder filling nozzle ( consist of inner and outer piping
) controls exhaust air volume at two-steps. that system exhausts
the same air volume as the powder volume to be packed in container
bag ( sack ) during filling up operation. after powder filling up
completion and when bag ( sack ) opening clamping is released, the
system exhaust air at the maximum rate.
( Exhaust air volume may depend on the valve size and
capacity of the dust collection equipment arranged by
customer.) |
|

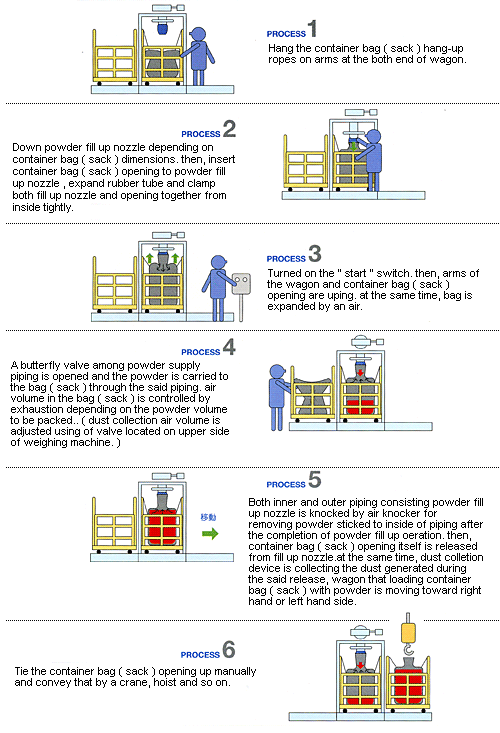

How to operate the container bag ( sack ) weighing machine |
|
|
